Alternator Conversion

Converting an MGA generator system to an alternator is a straightforward modification and is described extremely well on the following 2 websites:

• MGA Guru: http://mgaguru.com/mgtech/electric/ac101.htm

• Moss: MGA Alternator Conversion

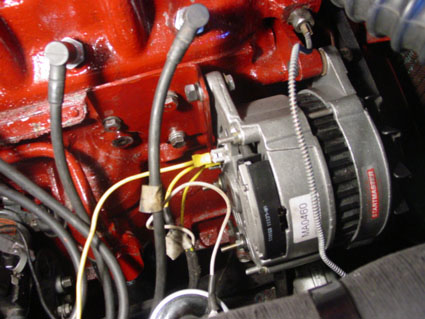

Below is the installation in PSJ 903

	Alternators are shorter than generators and require modified rear brackets.

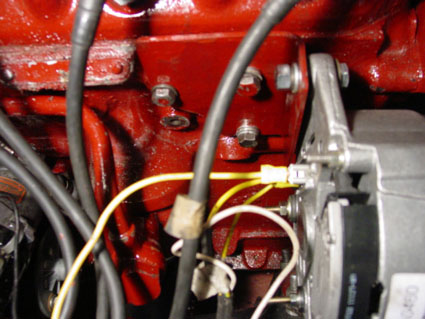

	The 1800 engine shown here has both generator and alternator bracket holes. A bracket has been fabricated that uses both front alternator bolt holes and the rear top generator bolt hole. The 1500 engine has only 2 bolt holes for the generator and needs a unique mounting system
